A dunnage bag that is underinflated will not hold the load. One that is overinflated can fail before the shipment reaches its destination. If you are looking for how to inflate cargo airbags the right way, the job starts before air ever enters the bag.
Thank you for reading this post, don't forget to subscribe!Proper inflation is not just about filling an empty space. It is about matching the bag to the void, the weight of the load, the mode of transit, and the pressure limits of the product. In truckload, railcar, and intermodal applications, small mistakes at inflation can turn into damaged product, rejected freight, and claim costs.
How to Inflate Cargo Airbags Without Guesswork
The correct process begins with bag selection. Before inflation, confirm that the dunnage bag size matches the void space and that the bag is rated for the application. A bag designed for a narrow pallet gap in over-the-road freight may not be suitable for a wider void or the higher forces seen in rail service.
You also need to verify that the contact surfaces are appropriate. Cargo airbags perform best when they sit squarely between stable load faces. If the bag is pressed against sharp edges, broken pallet boards, strapping seals, or uneven product contours, inflation pressure can create a puncture point instead of load support. In those situations, edge protection or a different securement approach may be needed.
Once the right bag is in place, use the proper inflator for the valve style. Most operations rely on compressed air tools designed specifically for dunnage bags. The goal is controlled inflation, not maximum air volume as fast as possible. Fast fill can be useful in high-throughput environments, but only if the operator can still stop at the correct pressure.
Start With Placement Before Pressure
Position the empty bag in the void so it is centered where the load needs restraint. The bag should sit vertically and make broad, even contact with both sides of the cargo as it expands. If it is twisted, folded, or wedged at an angle, it will not distribute force evenly.
This matters because cargo airbags are meant to stabilize loads, not push them apart. If the bag starts low in the void and mushrooms upward during inflation, or if it bridges a gap without proper side contact, it may look full while providing poor support. A properly placed bag fills the space with controlled, even pressure.
Before inflating, check that the valve is accessible and that the operator can monitor bag expansion. In tightly packed trailers or railcars, this can be overlooked. If the valve is buried or the bag cannot be observed during inflation, it becomes harder to avoid overfilling.

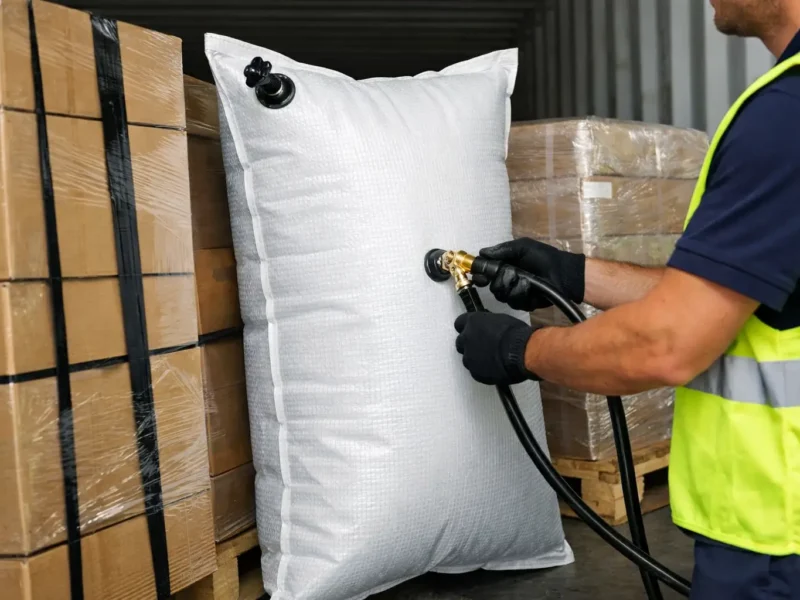

Use the Correct Inflation Tool
A dedicated dunnage bag inflator with the correct valve connection is the standard setup. This gives the operator better control and reduces air loss at the valve during filling. It also helps protect the valve from damage caused by forcing the wrong fitting into place.
If your operation uses multiple bag types, make sure the inflator matches the valve in use. Valve compatibility is not a small detail. Mismatched equipment slows loading, leads to leaks during inflation, and creates inconsistency across shifts or facilities.
Air source pressure also needs attention. Shop air is not the same as bag inflation pressure. The line feeding the tool may carry much higher pressure than the bag is designed to hold. That is why operators should follow the bag manufacturer’s pressure guidance and use inflation equipment that allows controlled fill.
Inflate to the Recommended Pressure, Not to a Visual Guess
One of the most common mistakes in learning how to inflate cargo airbags is using appearance as the main indicator. A full-looking bag is not necessarily at the correct pressure. Some bags will appear firm before they are doing enough work. Others can be dangerously overinflated while still looking acceptable to an untrained eye.
The better approach is to follow the manufacturer’s recommended inflation pressure for the specific bag and application. Those recommendations are based on bag construction, valve design, void size, and service conditions. Rail applications, for example, often involve higher impact forces than truckload moves, so the bag choice and inflation target may differ.
As the bag inflates, watch for even expansion across the load face. The bag should fill the void and become firm without distorting the cargo. Stop inflation if the bag begins to bulge into unsupported open space, wrinkle excessively at the edges, or push the load out of alignment. Those are signs that the void, placement, or bag size may be wrong.
Do Not Overinflate to Compensate for Poor Fit
If the bag is too small for the void, adding more air is not the solution. Overinflation increases stress on the bag and valve while doing little to improve true load restraint. The same is true when operators try to use a single bag in a gap that calls for a different size or configuration.
A good fit allows the bag to do its job within its rated pressure range. If achieving contact requires pushing the bag beyond that range, stop and reassess the setup. The cost of using the wrong bag is usually much lower than the cost of freight damage or a failed shipment.
Check the Bag After Inflation
Once inflated, inspect the installed bag before the trailer, container, or railcar is closed. The bag should be firm, centered, and in full contact with the cargo surfaces it is intended to brace. There should be no obvious puncture risk, no pinched valve, and no sharp edges pressing into the outer material.
Listen for air leakage around the valve area. A slow leak may not be obvious during loading, but it can leave the bag ineffective before the load reaches its first transfer point. If leakage is present, replace the bag or correct the connection issue immediately rather than hoping the pressure loss will be minor.
It is also worth checking whether the load itself has shifted during inflation. This can happen when one side of the cargo is less stable than expected. Dunnage bags are a restraint tool, but they work best with sound loading practices, stable pallets, and proper weight distribution.
Truck, Rail, and Intermodal Applications Are Not the Same
The basic inflation method is similar across modes, but the operating conditions are not. Over-the-road truck shipments may involve repeated vibration, braking, and cornering. Railcars introduce coupling impacts and higher force events. Intermodal adds multiple handling stages, which can change how pressure and contact points behave over time.
That is why there is no single answer for every shipment. The right inflation practice depends on the mode, void size, load weight, packaging type, and transit risk. A lightweight palletized shipment with tight load faces is different from heavy industrial product moving by rail in wide voids.
For warehouse teams, this means standard work instructions should match the freight profile, not just the bag brand. If your operation ships multiple product categories, bag selection and inflation procedures may need to vary by lane or mode.
Common Inflation Mistakes That Lead to Load Failure
Most field problems come back to a short list of avoidable errors. The bag is the wrong size, the pressure is guessed instead of controlled, the bag is placed against a sharp edge, or the operator tries to force a bag to solve a loading problem it was not designed to solve.
Another frequent issue is inconsistent training. One shift may inflate correctly while another relies on feel or speed. Over time, that inconsistency shows up as preventable claims. Standardizing the bag, the inflator, and the inflation method usually improves performance faster than adding more material.
It also helps to remember that dunnage airbags are one part of cargo securement, not the whole system. Stretch wrap, pallet quality, bracing, blocking, and loading pattern all affect whether the bag performs as intended.
Build a Process Your Team Can Repeat
The best inflation method is the one your team can repeat accurately under production conditions. That usually means using the right bag specification, the correct valve and inflator combination, clear pressure guidance, and a simple inspection step before release.
For many shippers, the real challenge is not understanding the idea of inflation. It is choosing a bag and tool setup that fits their load profile without slowing throughput. That is where supplier guidance becomes useful. An experienced manufacturer such as Plastix USA can help match bag construction, size, and inflator equipment to the actual conditions your freight sees.
If you want fewer claims and more consistency at the dock, treat inflation as a controlled securement step, not a last-minute task. The bag only performs as well as the process behind it.
